Overspanningsbeveiliging iPF40 3P+N 40kA GR.01/PG.A01 Acti9
Leave feedback on the product
Overspanningsbeveiliging Type 2 (C) voor TN-S/TT netwerken, 3P+N, 40kA In, 1,5kV Up. MOV + GDT technologie, DIN-rail montage, afmetingen 72x81x69mm. Bedrijfsspanning 230/400V AC.
Shipping costs are not included in the price.
Shipping costs are not included in the price.
Kies een variant:
Individual variants may differ in price
Hoeveelheid
Product code:
Beschrijving

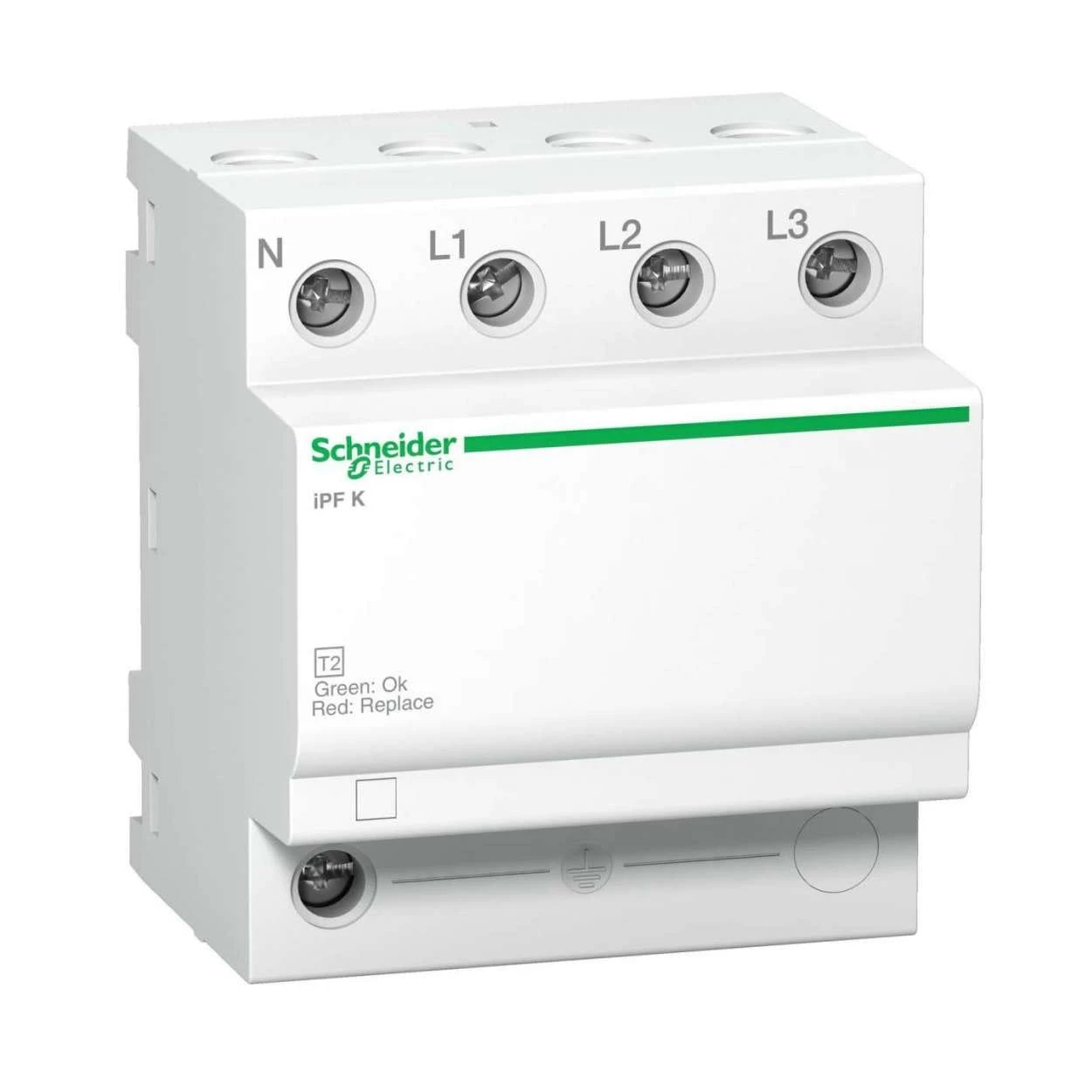

Overspanningsbeveiliging Type 2 (C) 3P+N 40kA 1,5kV iPFK40-T2-3N A9L15688 SCHNEIDER ELECTRIC
Overspanningsbeveiliging Type 2 (C) 3P+N 40kA 1,5kV iPFK40-T2-3N A9L15688 SCHNEIDER ELECTRIC
- Aantal polen: 3P +N
- Nominale bedrijfsspanning [Ue]: 230/400 V wisselstroom (AC) (+/- 10%) bij 50/60 Hz
- Nominale afvoerstroom [In]: common mode: 15 kA L/PE, common mode: 15 kA N/PE, differential mode: 15 kA L/N
- Maximale afvoerstroom [Imax]: common mode: 40 kA L/PE, common mode: 40 kA N/PE, differential mode: 40 kA L/N
- Maximale continue bedrijfsspanning [Uc]: common mode 260 V N/PE, differential mode: 340 V L/N
- Spanningsbeschermingsniveau [Up]: common mode <1,5 kV type 2 N/PE, differential mode <1,5 kV type 2 L/N
- Montage: DIN-rail
SPECIFICATIE
| Parameter | Waarde |
|---|---|
| Gewicht verpakking | 0,407 kg |
| Elektroklub | ja |
| Voor netwerk | TN-S/TT |
| Klasse beveiliging | C (Type 2) |
| Nominale afvoerstroom (In) | 40kA |
| Spanningsbeschermingsniveau | 1,5kV |
| Aantal polen | 3P +N |
| Afstandssignalering | Zonder |
| Type overspanningsbeveiliging | Elektrisch distributienetwerk |
| Klasse overspanningsbeveiliging | Type 2 |
| Technologie overspanningsbeveiliging | MOV + GDT |
| [Ue] nominale schakelspanning | 230/400 V wisselstroom (AC) (+/- 10 %) bij 50/60 Hz |
| Maximale continue bedrijfsspanning [Uc] | Common mode: 260 V N/PE Differential mode: 340 V L/N |
| Spanningsbeschermingsniveau [Up] | Common mode <1,5 kV type 2 N/PE Differential mode <1,5 kV type 2 L/N |
| Tijdelijke overspanning [Ut] | 337 V L/N 5 s weerstand 442 V L/PE 5 s weerstand 1200 V N/PE 200 ms weerstand 1453 V L/PE 200 ms weerstand |
| Afmetingen | 72x81x69mm |
